Continuous Innovation, High Quality INDUSTRIAL 3D PRINTER
.webp)

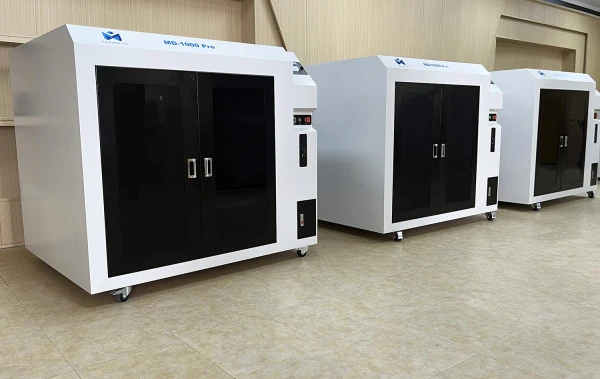

With a 1 cubic meter build volume, the MINGDA PRO is a fully enclosed industrial 3D printer for producing fullscale, large parts including functional prototypes, factory tooling, patterns and molds, and end-use parts. Built for productivity throughout all stages of manufacturing, the PRO provides designers, engineers, and manufacturers with an easy-to-use, agile solution to produce faster and cheaper.
Supported In its XY axis module structure, high precision and fast speed; Z axis four-screw, smooth and stable, MD-1000 Pro consistently provides speed, precision and quality. A new MINGDA hybrid hardware and software solution that lets you skip the hassle and start printing, the MD-1000Pro is easier than ever to use.
Two Nozzle Modes To Meet Different Material Requirements
The MD-600 Pro is a high-performance and commercial industrial 3d printer. It can be equipped with a high-temperature hot end or standard-temperature hot end, which can swap quickly for different applications or filaments.

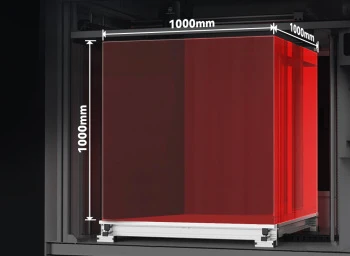

Massive Build Volume
MD-1000 Pro has massive build volume of 1000*1000*1000(mm) which enable engineers and makers to print parts in single piece.
Accurate Linear Guide Rail
Large-scale printed models the appearance of 4 to 5 times more precision than ordinary 3D printing

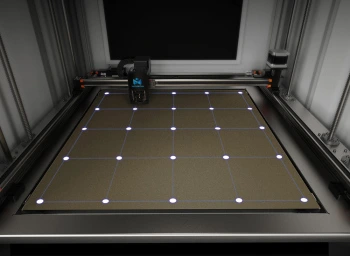

Innovator Of Industrial 3D Printer Auto-Leveling
The interlligent leveling system can automatically adjust the uneven hotbed. High-sensitivity sensor, one-touch leveling and 25-point precise leveling.
Baby Step Intelligent Compensation
Baby step function is added on MD-1000 Pro/Pro+ During the first layer printing process, the baby step can be used for precise leveling. The control accuracy of 0.01mm makes the first layer stable and reliable and makes the leveling more intelligent.
UPS (Uninterrupted Power Supply)
Buit in UPS, When the machine is powered off, the machine will automatically suspend printing, and retum to the home point, when the power on, the machine will continue to complete the remaining printing work from the point of suspension.

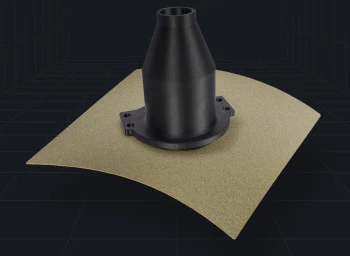

Maximum Adheshion Painless Removal
Our Build Plate system completely removes scrapers and damage to 3d prints. The magnetic build plates that come with MD-1000 Pro are flexible and detachable so you can remove the models with ease.
Product Parameters
| PRINTING | |
|---|---|
| Printing Technology | Fused Deposition Modeling |
| Bulid Volume | 600*600*600mm |
| Number of Nozzle | Single |
| Layer Thickness | 0.05-0.3mm |
| Filament Diameter | 1.75mm |
| Filament Campatibility | PLA、ABS、ASA、TPU、PETG、PETG-ESD，PET-GF, PET-CF, PA12-CF,HtPA-GF, HtPA-CF |
| Nozzle Diameter | 0.6mm (0.4mm, 0.8mm optional) |
| ELECTRICAL | |
|---|---|
| Power Requirements | 110/220V |
| Rated Power | 1200w |
| Screen | |
| Connectivity | USB, SD card, U disk |
| SPECIAL FUNCTION | |
|---|---|
| Uninterruptible Power System | Save data when power is off |
| Resume Printing After Power Failure | Available |
| Filament Detection | Pause printing when filament run out |
| Automatic Shutdown | Turn off the power automatically when printing is complete |
| TEMPERATURE | |
|---|---|
| Max. Nozzle Temp. | 350degree |
| Max. Bed Temp. | 110degree |
| SPEED | |
|---|---|
| Recommend Printing Speed | 60-100mm/s |
| Max Printing Speed | 200mm/s |
| MECHANICAL | |
|---|---|
| Construction | Power-coated Steel, Aluminum Casting for Motion Components |
| Platform | 10mm thickness aluminum hot bed |
| Leveling | auto-leveling |
| X Y Postition Precision | 0.015mm |
| Z Postition Precision | 0.0015625mm |
| SOFTWARE | |
|---|---|
| Support Software | MCura, Reptier-Host, Simplify3D |
| Supported File Types | Stl, Obj, G-code |
| Operating Systems | Windows(7,8,10),Mac OS X |
