10 Advantages
350 degrees Direct extruder
IDEX System
Dual Color & Dual Materials Mode
Duplication & Mirror Mode
Fully Enclosed Metal Structure
Auto Leveling System
Removable PEI Plate
Fast Print
Air Filtration System
Leakage Protection

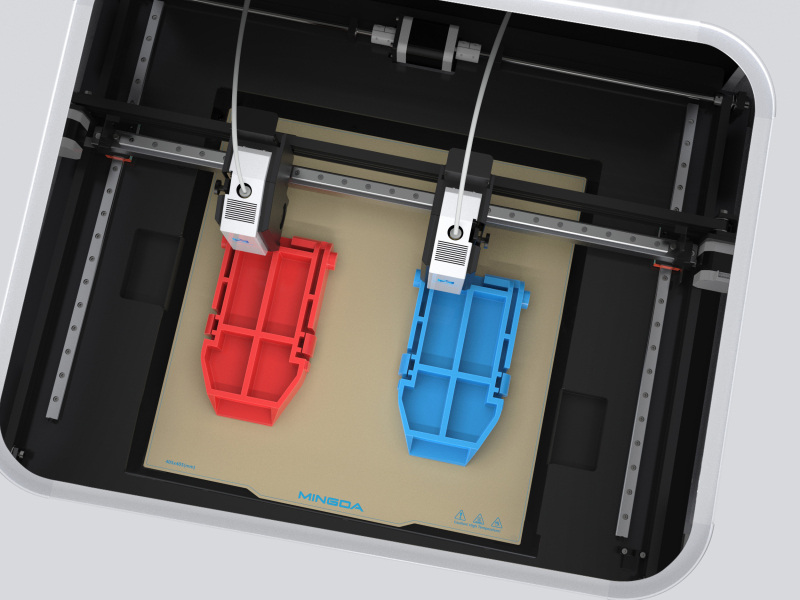

Dual Extruders Working Independently
The dual extruders on the MD-400D work independently and are not bundled, allowing for flexible and precise control. When using only one extruder, the other extruder is moved away from the print area to prevent unwanted filament overflow onto the printed object. However, the extruders can also work simultaneously and independently if higher productivity is required.
Four Printing Modes
Duplicate Mode
Equivalent to 2 printers working, achieve double productivity

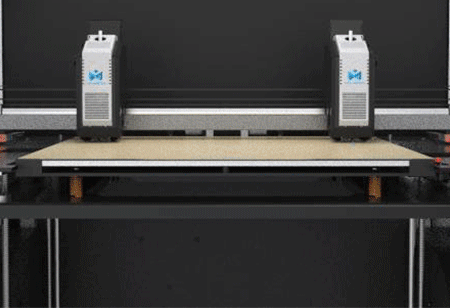

Mirror Mode
Support printing symmetrical models while saving half the time

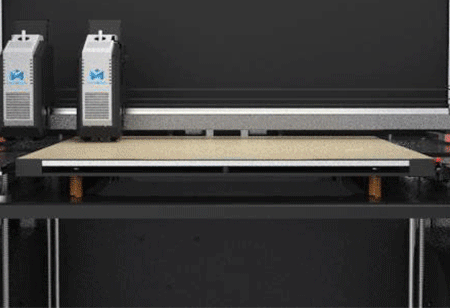

Support Mode
Print complex structural models, complex models can also be printed smoothly and with high precision

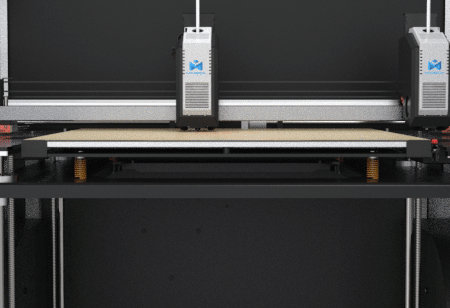

Dual-Color Mode
Allows printing different parts of a model in 2 colors
Two Temperature Modes
To Meet Different Material Requirements
MD-400D is a flexible, high performance and commercial industrial 3d printer. It's equipped with two types of extruders, therefore various printing needs can be met selecting the matching module according to different types of filaments.

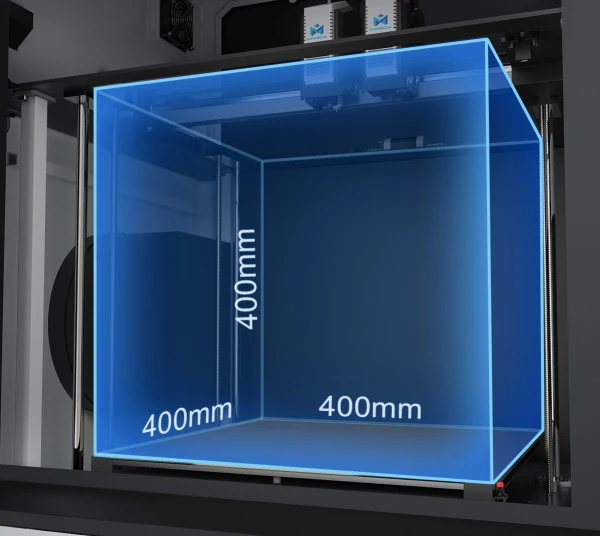

Large Build Volume
Printing size: 400mm * 400mm * 400mm; meets most prototype printing needs
Flexible PEI Platform
With good viscosity, the model is not easy to warp during the printing process and easy to remove after finished printing

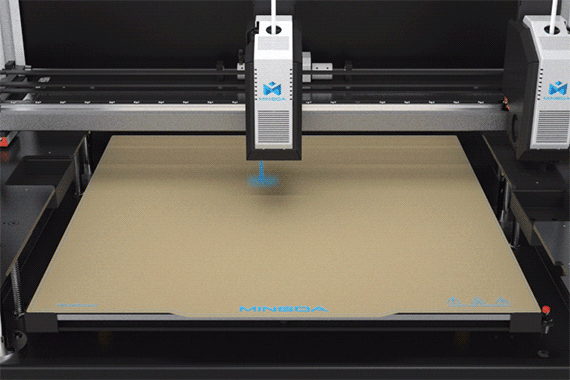

Free Leveling
The automatic leveling system greatly improves printing efficiency and quality stability. It helps to reduce failed prints caused by an unleveled build plate.

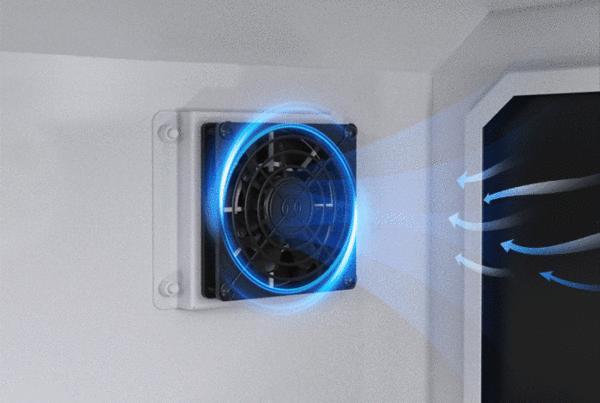

Air Filtration System
During the printing process, the air filtration system can effectively clean particles (including nanoparticles) in the air. The system operates silently to ensure a quiet working environment.
Fully Metal Enclosed Structure
The fully enclosed structure of the MD-400D helps maintain temperatures printing with ABS and other advanced materials for high-quality prints. This reduces issues like model shrinkage, warping at corners, and broken filaments, ensuring good print results, high precision, and a high success rate.

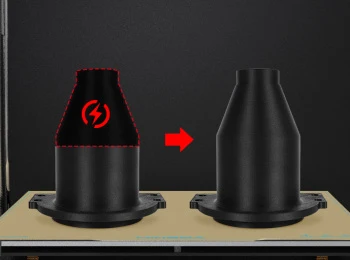

Smart Resume Printing Function
The machine can automatically resume printing after power-off, less worries on print failure.

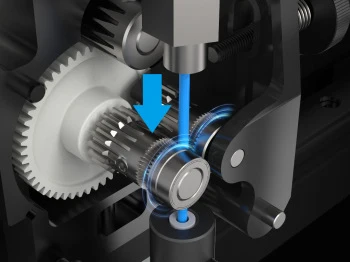

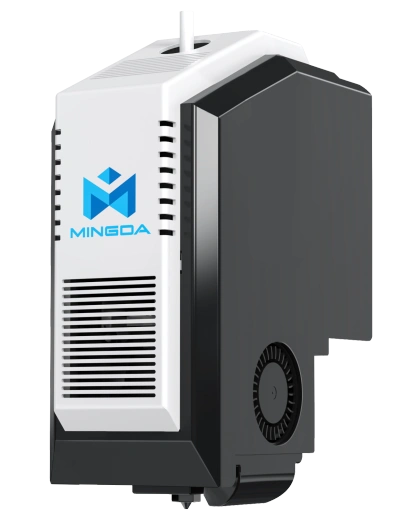

Double Gears Direct Extruder
Double gears direct extruder with strong pushing force for more stable & accurate printing greatly reduces the risk of under extrusion.
5 inch Colorful Touch Screen
Large screen, simple operation.

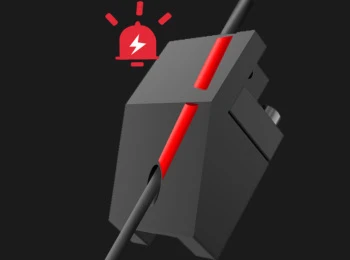

Automatic Filament Detection
It will pause the printing process if the filament run out, or if the filament is broken.
Compatible With Various Filaments
Common filament : PLA, ABS, TPU, PETG, ASA, etc;
Engineering filament : HtPA, PET-GF, PET-CF, PA12-CF, HTPA-GF, HTPA-CF, ABS-GF25, ABS-CF20, PA-GF25,PA-CF25,etc
Support filament : S-Mulit, S-HtPA, PVA, etc
Application
MD-400D IDEX 3D Printer: Double Your Productivity
MINGDA MD-400D is equipped with independent dual extruders, support Duplication and Mirror printing modes capable of printing two pieces at a time. Double printing capacity means double productivity. When you have an MD-400D 3D printer, you get one printer but you double your productivity.
MD-400D IDEX 3D Printer Mirror Mode For Printing Symmetrical Models - TPU Insole
MD-400D is engineered with an Independent Dual Extruder (IDEX), making it stand out in its class. It offers several different printing modes that make it both versatile and capable of tackling numerous projects.
Printing a PET-GF Bike Helmet with Breakaway Support Filament using MINGDA MD-400D IDEX 3D Printer!
In this video, we demonstrate the capabilities of the MD-400D 3D printer by showcasing the printing process of a high-performance PET-GF bicycle helmet with the breakaway support filament, to achieve intricate details and a flawless finish. To discover how the MD-400D takes 3D printing to the next level.
Heart Model with MINGDA MD-400D IDEX 3D Printer & Water-soluble Support Filament
In addition to its ability to print breakaway support filaments, the MINGDA MD-400D offers the advantage of printing with water-soluble support filaments. One of the most commonly used water-soluble support filaments is PVA (Polyvinyl Alcohol). After the printing process is complete, simply submerging the printed part in water will fully dissolve the supports
Product Parameters
| PRINTING | |
|---|---|
| Printing Technology | Fused Deposition Modeling |
| Print Volume | 400*400*400mm |
| Duplicate Mode | 400(2*200)*400*400 mm |
| Mirror Mode | 350(2*175)*400*400 mm |
| Extruder Type | IDEX (Independent Dual Extruders) |
| Nozzle Diameter | 0.4mm (0.6mm, 0.8mm optional) |
| Filament Diameter/td> | 1.75mm |
| Filament Compatibility | Common filament:PLA, ABS, TPU, PETG;Engineering filament:PA-CF/GF, PET-CF/GF,HtPA-CF/GF,ABS-GF25, ABS-CF20, PA-GF25/CF25;Support filament:S-Mulit, S-HtPA, PVA, etc |
| ELECTRICAL | |
|---|---|
| Power Requirements | 100/240V-50/60Hz |
| Rated Power | 700W, Extruder：80W, Hot Bed:500W |
| Connectivity | Type-C, SD card, U disk |
| SPECIAL FUNCTION | |
|---|---|
| Out of Filament Reminder | Available |
| Resume Printing After Power Failure | Available |
| Air Filter | Available |
| Build Plate Leveling | Auto Leveling |
| TEMPERATURE | |
|---|---|
| Extruder Temperature | ≤350°C |
| Extruder Temperature | ≤110°C |
| SPEED | |
|---|---|
| Recommend Printing Speed | 60-100 mm/s |
| Max Printing Speed | 200mm/s |
| MECHANICAL | |
|---|---|
| Print Precision | ± 0.1 mm |
| Platform | PEI |
| Package Weight | 112.5Kg |
| Package Size | 82x72x108cm |
| SOFTWARE | |
|---|---|
| Support Software | MINGDA-Cura, Reptier-Host, Simplify3D |
| Supported File Types | Stl, Obj, G-code |
| Operating Systems | Windows(7,8,10),Mac OS X |
